Resideo T4 Pro TH4110U2005/U Programmable Thermostat, 7 Day, 5-1-1 Day, 5-2 Day Or Non-Programmable Programmability, 1 H / 1 C (Conventional Or Heat Pump Without Aux Heat), Auto, Manual, Wall Mount (UWP Mount), Wired / Lead Wires, 20-30 VAC, Dual Powered
Resideo T4 Pro TH4110U2005/U Programmable Thermostat, 7 Day, 5-1-1 Day, 5-2 Day Or Non-Programmable Programmability, 1 H / 1 C (Conventional Or Heat Pump Without Aux Heat), Auto, Manual, Wall Mount (UWP Mount), Wired / Lead Wires, 20-30 VAC, Dual Powered
| Accuracy | : | ± 1 °F |
| Additional Information | : | 3.93 in Medium Soft Key C Square Display, For Use With LED Back Light |
| Amperage Rating | : | 0.02-1.0 A (Heating W), 0.02-1.0 A (Cooling Y), 0.02-0.5 A (Fan G) |
| Battery Size | : | AA |
| Battery Type | : | AA Alkaline |
| Changeover | : | Auto, Manual |
| Color | : | White |
| Connection Type | : | Wired / Lead Wires |
| Contact Rating | : | 0.02-1.0 A (Heat/Cool, 20-30 VAC), 0.02-0.5 A (Fan, 20-30 VAC) |
| Control Range | : | 40 °F-90 °F (Heat), 50 °F-99 °F (Cool) |
| Cool Current | : | 0.02-1.0 A |
| Dehumidification | : | No |
| Differential Temperature | : | ± 1 °F |
| Dimensions | : | 4-1/16" H x 4-1/16" W x 1-5/32" D |
| Display Type | : | LCD (Backlit) |
| Electrical Connection | : | UWP Mounting System |
| Fan Current | : | 0.02-0.5 A |
| Frequency Rating | : | 50 Hz, 60 Hz |
| Heat Current | : | 0.02-1.0 A |
| Humidity Rating | : | 5-90% RH (Non-Condensing) |
| Material | : | Plastic |
| Model | : | TH4110U2005/U |
| Mounting Type | : | Wall Mount (UWP Mount) |
| Power Rating | : | 1.0 VA (Backlight On) |
| Power Source | : | Dual Powered |
| Programmability | : | 7 Day, 5-1-1 Day, 5-2 Day or Non-Programmable |
| Sensing Element | : | Thermistor |
| Series | : | T4 Pro |
| Stages | : | 1 H / 1 C (Conventional or Heat Pump without Aux Heat) |
| Switch Position | : | Heat-Off-Cool-Auto |
| Switch Type | : | Relay |
| Temperature Rating | : | 37-102 °F |
| Temperature Settings | : | 40°F - 90°F (Heat), 50°F - 99°F (Cool) |
| Terminal Designation | : | R, RC, C, W, O/B, Y, G, L, K |
| VA Rating | : | 1 VA (Backlight On) |
| Voltage Rating | : | 20-30 VAC |
Easy to install and intuitive to use, the T4 Pro Programmable Thermostat learns how long it takes your system to reach the desired temperature and activates the system earlier to help you feel comfortable sooner.The T4 Pro Programmable Thermostat helps you manage your home heating and cooling in a simple, easy to use device. Designed to streamline everything from installation to user experience, the T4 features push button control and seven-day scheduling, including an option to set a different schedule on weekends. With its adaptive intelligent recovery, the T4 helps you feel comfortable sooner by learning how long it takes your system to reach a desired temperature and activating the system earlier.
Resideo Programmable Thermostat, Model: T4 Pro, 7 Day, 5-1-1 Day, 5-2 Day Or Non-Programmable Programmability, 1 H / 1 C (Conventional Or Heat Pump Without Aux Heat), Auto, Manual, Wall Mount (UWP Mount), Wired / Lead Wires, 20-30 VAC, Dual Powered, LCD (Backlit), 40°F - 90°F (Heat), 50°F - 99°F (Cool), UWP Mounting System, R, RC, C, W, O/B, Y, G, L, K Terminal Designation, 1 VA (Backlight On), 37-102 °F, ± 1 °F, Thermistor, 5-90% RH (Non-Condensing), No Dehumidification, White, 4-1/16" H x 4-1/16" W x 1-5/32" D Dimensions, Plastic, AA Alkaline Battery, 0.02-1.0 A (Heat/Cool, 20-30 VAC), 0.02-0.5 A (Fan, 20-30 VAC), 50 Hz, 60 Hz, Heat/Off/Cool/Auto (System), Auto/On (Fan), Relay
- Supports 1 Heat/1 Cool conventional systems or 1 Heat/1 Cool heat pump systems without auxiliary heat.
- Offers flexible programming options: 7-day, 5-2 day, 5-1-1 day, or non-programmable.

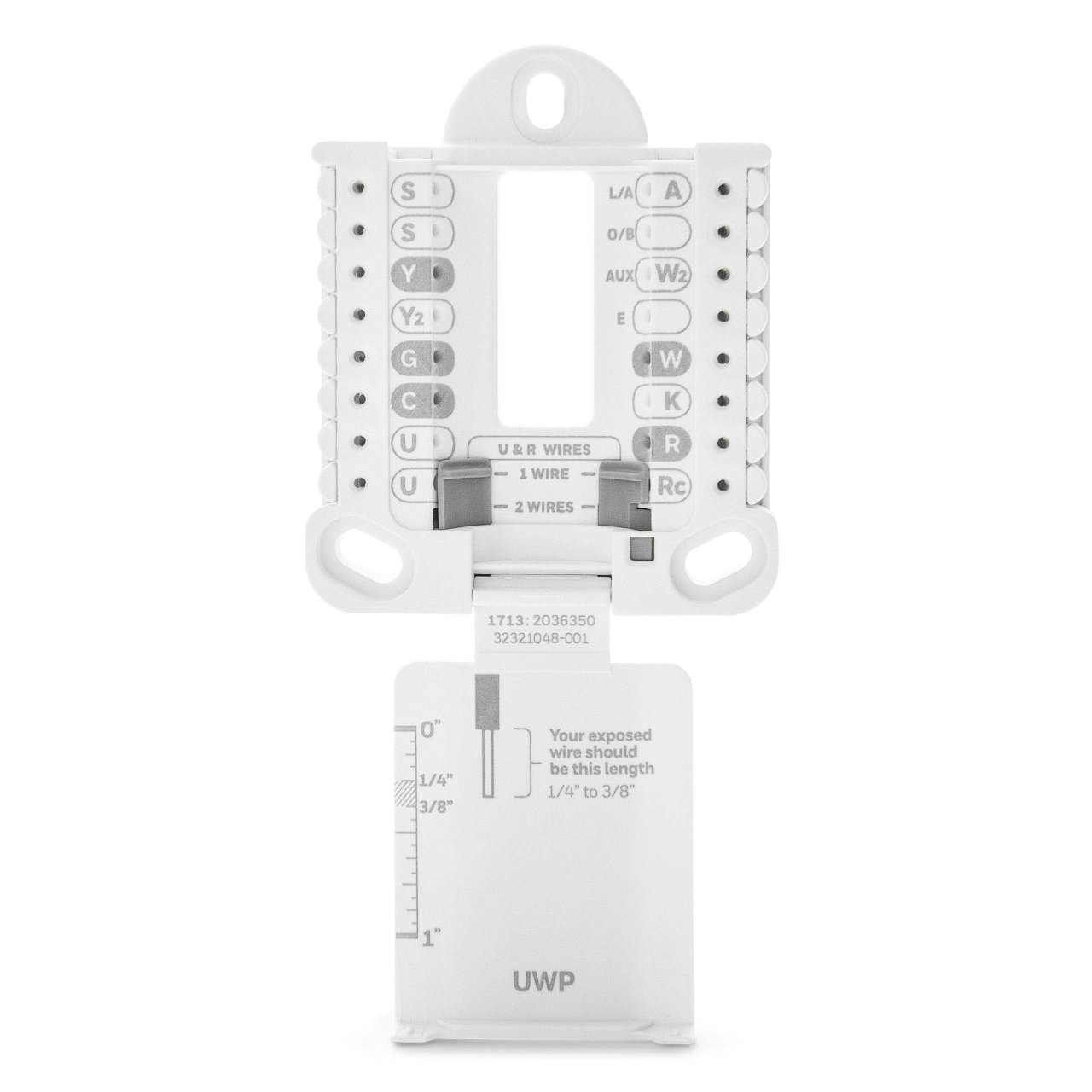

- Utilizes the standard UWP mounting system for simple installation and easy upgrades across the T Series.

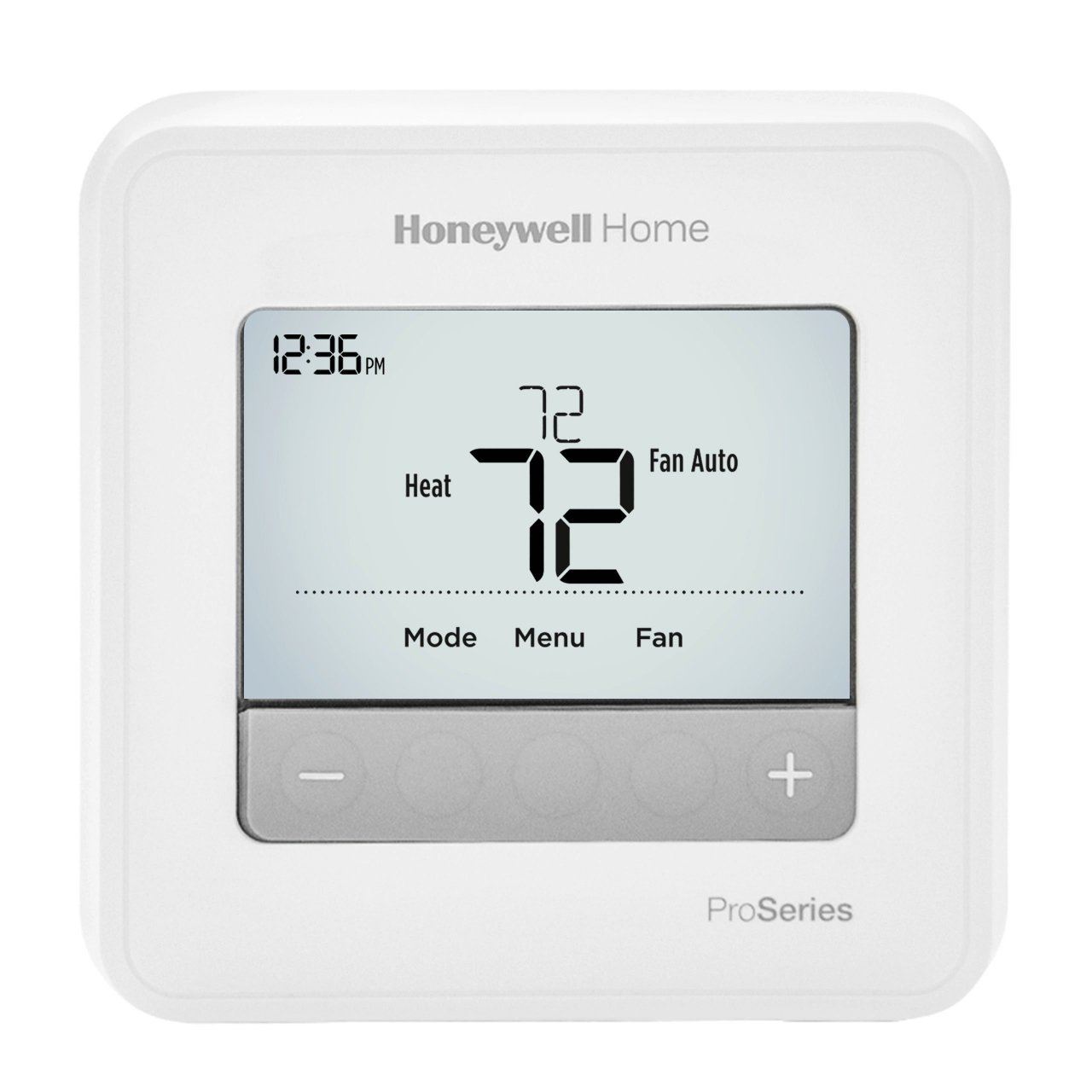

- Features simple push-button functionality and a clear, backlit digital display.
- Includes Adaptive Intelligent Recovery, which learns heating/cooling cycle times to optimize comfort.
- Provides filter change reminders to help maintain system efficiency.
- Can be powered by battery or hardwired (C-wire).
- Includes a 5-year manufacturer warranty.
