DiversiTech Devco 623-002 Screw-On Wire Connector, Wire Nut / Twist-On, 16-22 AWG, 300 V, Insulated, For Copper Conductors Cable, 221 °F (Maximum), Thermoplastic
DiversiTech Devco 623-002 Screw-On Wire Connector, Wire Nut / Twist-On, 16-22 AWG, 300 V, Insulated, For Copper Conductors Cable, 221 °F (Maximum), Thermoplastic
Manufacturer: DiversiTech Corporation
Brand: DiversiTech®
Part #: 305546
MPN: 623-002
CPN:
| Cable Type | : | Copper Conductors |
| Color | : | Blue |
| Connection Type | : | Wire Nut / Twist-On |
| Diameter | : | 0.386 " |
| Height | : | 0.697 " |
| Insulated/Non-Insulated | : | Insulated |
| Insulation Material | : | Thermoplastic |
| Material | : | Thermoplastic |
| Model | : | 623-002 |
| Series | : | Devco |
| Temperature Rating | : | 221 °F (Maximum) |
| Voltage Rating | : | 300 V |
| Wire Size | : | 16-22 AWG |

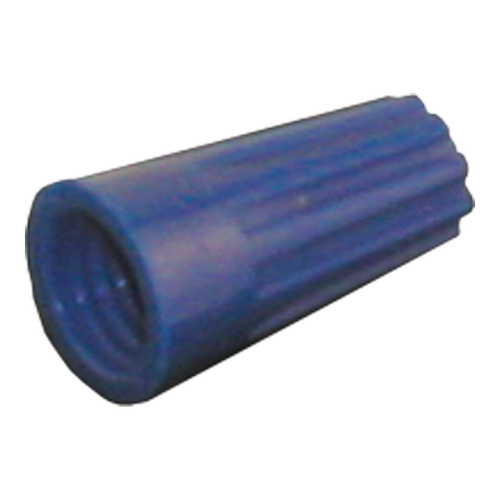

The Devco® 623-002 Blue Screw-On – size 72B, #22 to #14 AWG, 300V Max., pack of 100. Color-coded connectors make quick, secure connections for positive continuity. High-dielectric Thermostat plastic shell resists chemical action from hydrocarbons, dilute acid or alkaline solutions. Deep skirt design prevents exposure of bare wire.
DiversiTech Screw-On Wire Connector, Model: Devco, Wire Nut / Twist-On, 16-22 AWG, 300 V, Insulated, For Copper Conductors Cable, 221 °F (Maximum), Thermoplastic, Blue, 0.697" Height, 0.386" Diameter
- Color-coded blue for easy wire size identification (Size 72B).
- Provides quick and secure screw-on connections for positive continuity.
- High-dielectric thermoplastic shell resists chemicals like hydrocarbons, dilute acids, and alkaline solutions.
- Deep skirt design prevents bare wire exposure for enhanced safety.
- UL Listed and CSA Certified, rated up to 221°F (105°C) and 300V.
- Designed for 16-22 AWG copper-to-copper wire connections.
